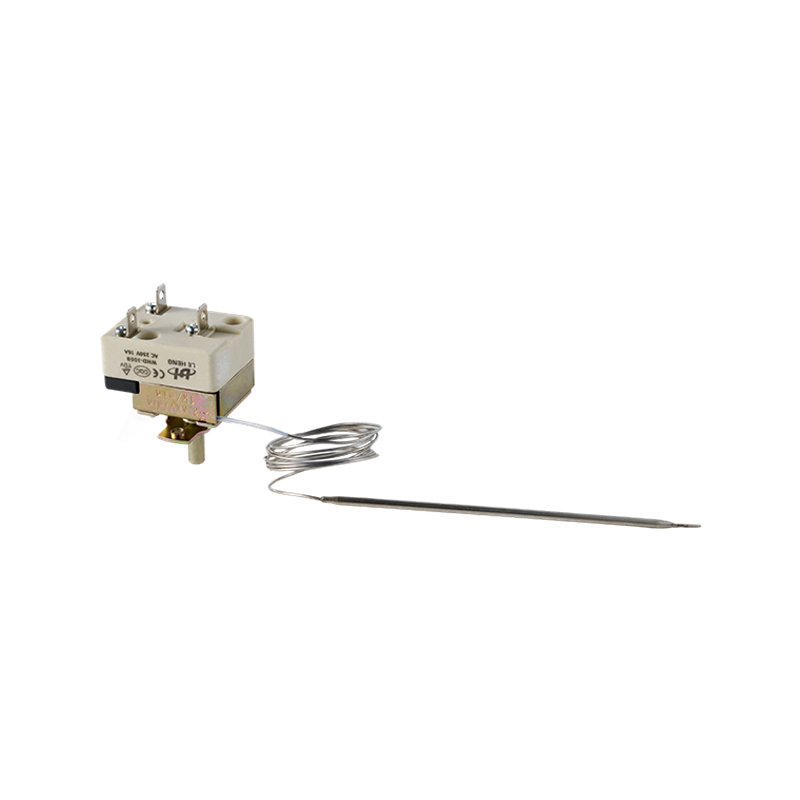

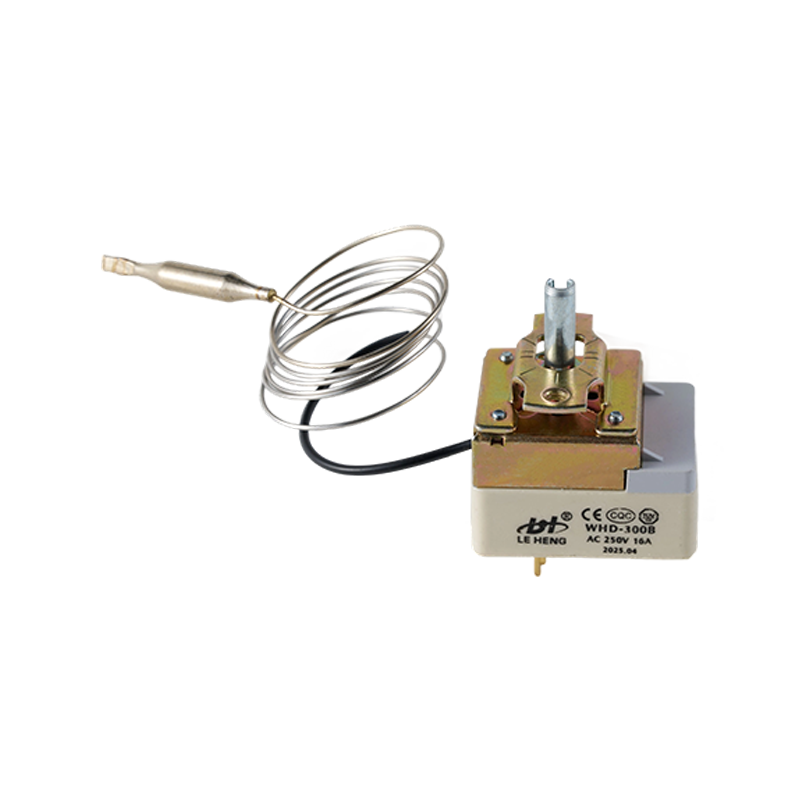

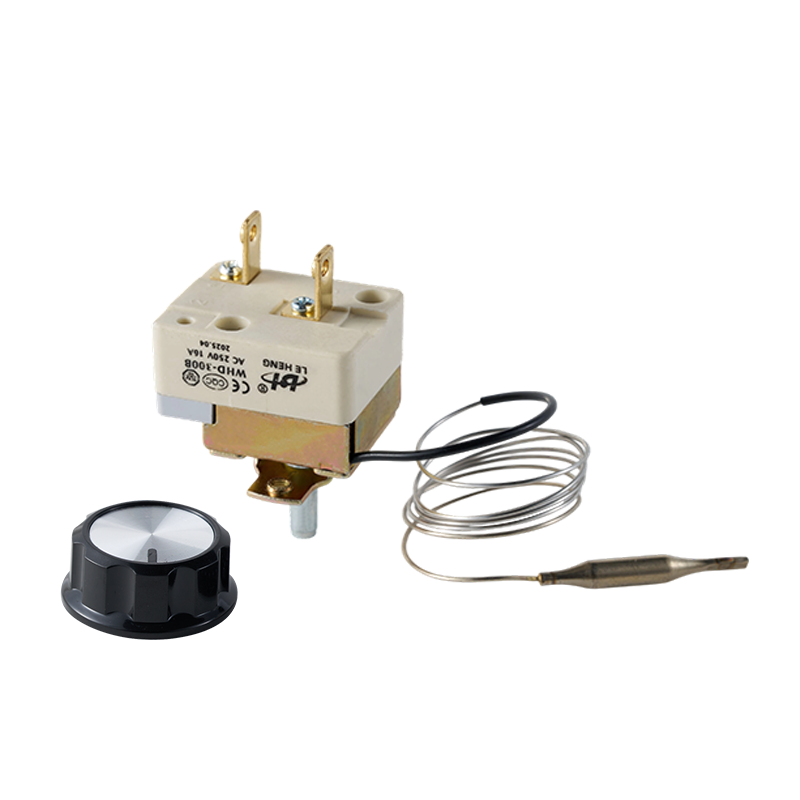

WHD-B(16A/25A) Adjustable Temperature Mechanical Capillary Thermostat

WHD-B(16A/25A) Adjustable Temperature Mechanical Capillary Thermostat is specially designed for precise temperature control in various industrial and household applications. This thermostat is equipped with a mechanical capillary sensor, which can adjust the temperature within the set range. It is commonly used in electric heating appliances such as sausage grills, waffle makers, warming tables, boiling water kettles, etc. With its ceramic material and sturdy construction, WHD-B(16A/25A) has reliable performance and a long life. The adjustable temperature function enables it to be flexible under different operating conditions, ensuring the accuracy and stability of the temperature.

+ Contact us
PREV：WHD-D Adjustable Mechanical Temperature ThermostatNEXT：Stainless Steel Adjustable Capillary Temperature Controller
  • Parameter

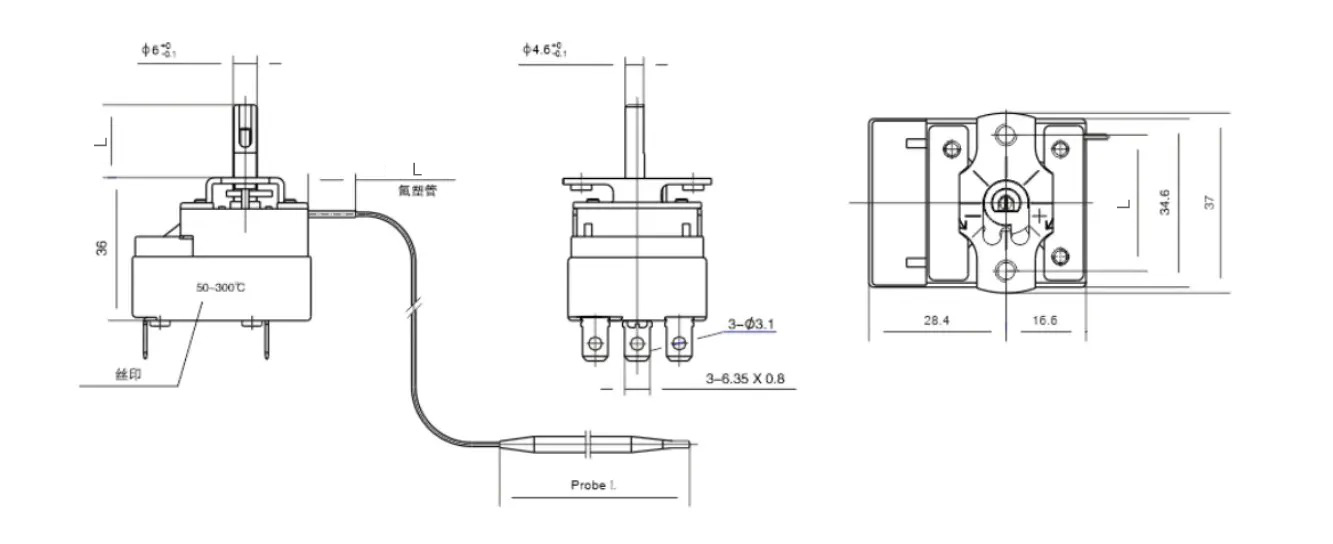

  • Diagram
  • Related Products
  • Contact

* Current: 30A 32A
* Temperature Range any temperature range below 320°C
* Bulb Dia: 6mm
* Bulb Length: as different temperatures
* Max resistance temperature T125
* Length of Capillary: 300-2000mm
* On-off Temperature Difference: 2-12℃
* Application: Sausage grill, waffle maker, warming tray, electric kettle and other electric heating appliances.
