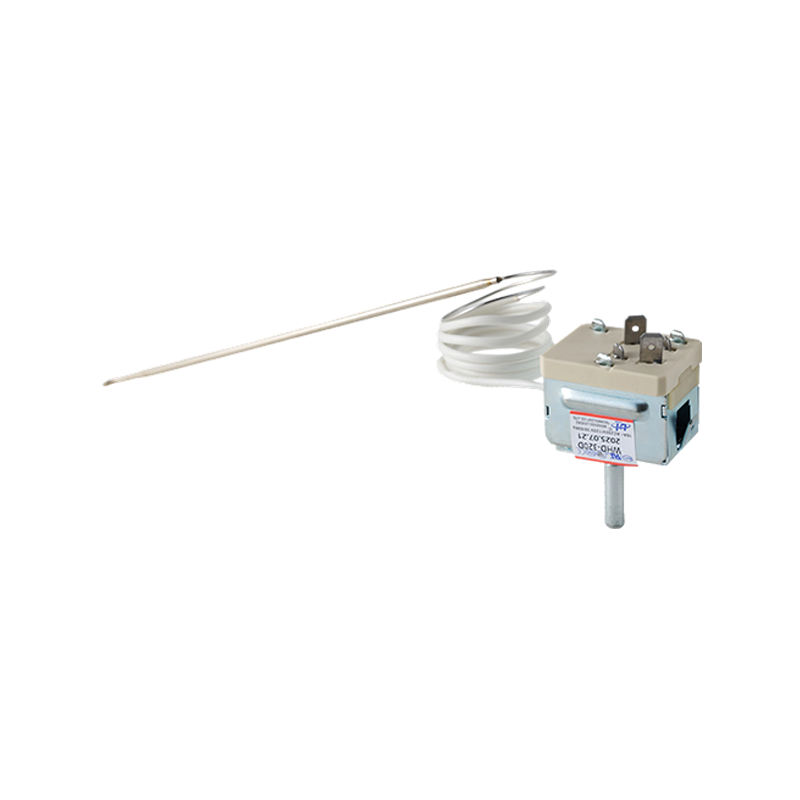

WHD-D Adjustable Mechanical Temperature Thermostat

The WHD-D adjustable mechanical thermostat offers reliable temperature control. It features a manual adjustment dial, allowing users to set temperatures according to their needs. The mechanical design ensures durability and consistent performance. Suitable for various heating systems, it provides stable temperature regulation. Its straightforward installation and operation make it user-friendly. The WHD-D is ideal for those seeking a cost-effective and durable solution for maintaining desired temperatures in different applications.

+ Contact us
PREV：WHD-S (20A) Adjustable Electric Heating ThermostatNEXT：WHD-B(16A/25A) Adjustable Temperature Mechanical Capillary Thermostat
  • Parameter

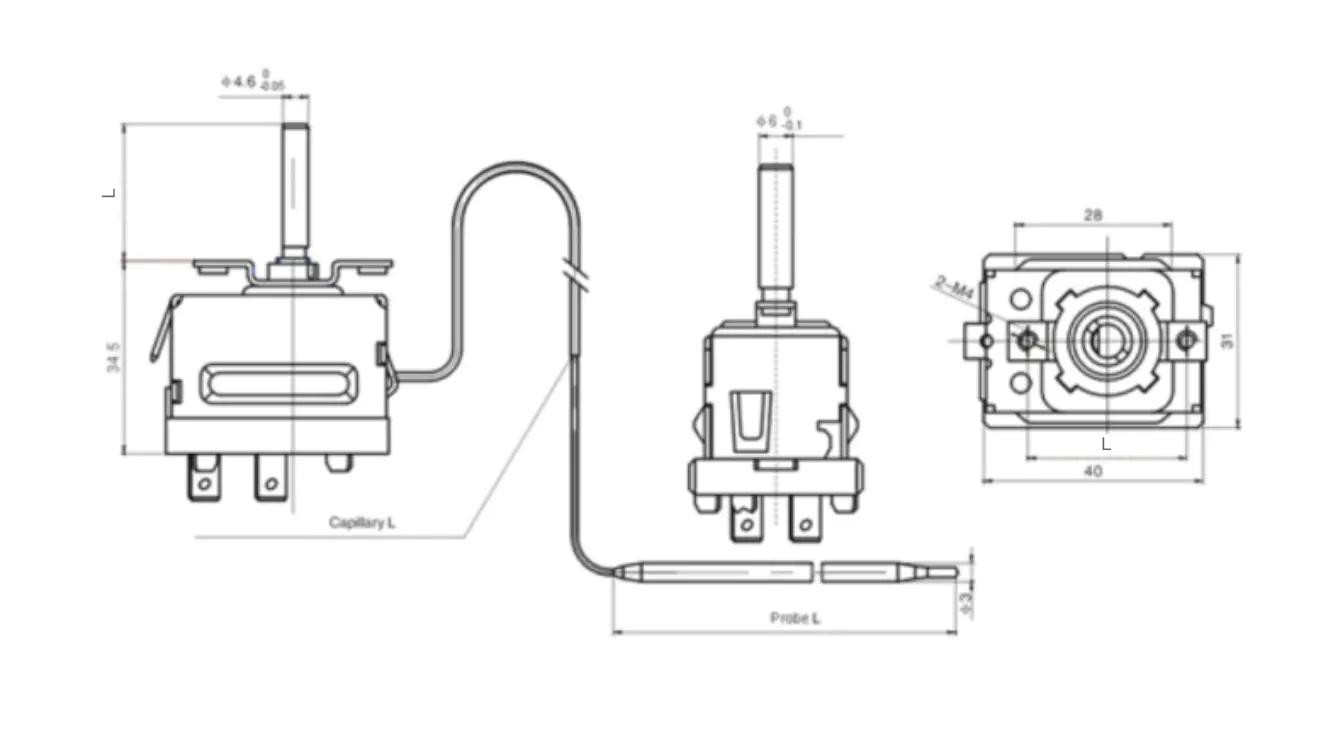

  • Diagram
  • Related Products
  • Contact
Model WHD-D
Rated voltage 250V
Rated current 16A
Regulating range 0-120℃
Ambient temperature -5℃~60℃
Switching differential 10±5℃
Length of the capillary tube 1000-2000mm
Diameter of copper tube 3mm
Note According to the parameters of the device, select the appropriate temperature controller. The company can process the accessories, such as the length of the capillary tube, according to the requirements, but it must indicate the type of device when ordering.
