Stainless Steel Adjustable Capillary Temperature Controller

The stainless steel adjustable capillary thermostat is a mechanical temperature regulating device designed for precise temperature control in heating systems. It employs a stainless steel capillary and bulb filled with a liquid sensitive to environmental or surface temperature changes. As the liquid expands or contracts with fluctuations, it activates a mechanical switch, connecting or disconnecting the circuit.

The WHD-E thermostat offers a variable temperature range, allowing users to set thresholds according to application needs. This adaptability makes it suitable for various heating devices, particularly water heaters, with an operating temperature range of 75°C (70°C/72°C/73°C).

+ Contact us
PREV：WHD-B(16A/25A) Adjustable Temperature Mechanical Capillary ThermostatNEXT：WHD-E-CU Copper Adjustable Capillary Temperature Controller
  • Parameter

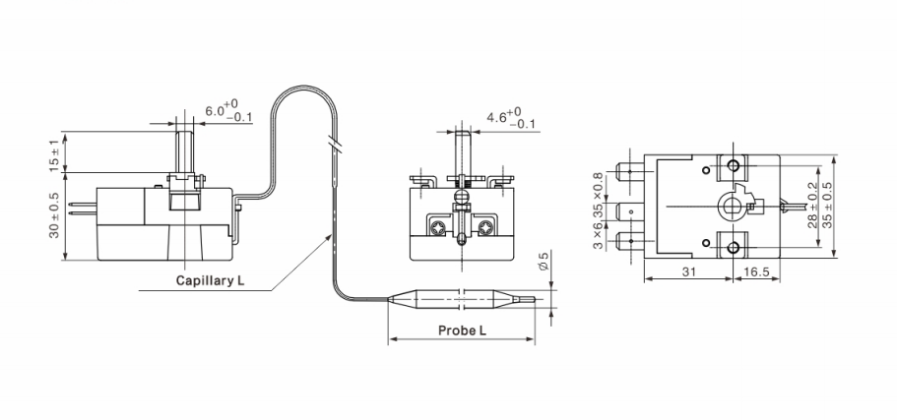

  • Diagram
  • Related Products
  • Contact

* Rate: AC16A 250V
* Temperature Range: 0-320℃
* Bulb Dia: 6mm
* Bulb Length: as different temperatures
* Application Environment Temperature: T150
* Length of Capillary tube: 300~2000mm
* On-off Temperature Difference: 2~12℃
* Application: Oven, griddle, fryer, heater, boiler, etc.
