| Actuation | Latching |
| Colour | Green |
| Contact Configuration | SPST |
| Contact Rating | 6A 250VAC, 10A 125VAC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illumination Colour | Green |
| Illumination Voltage | 230VAC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 20mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
| Parameter | Specification |

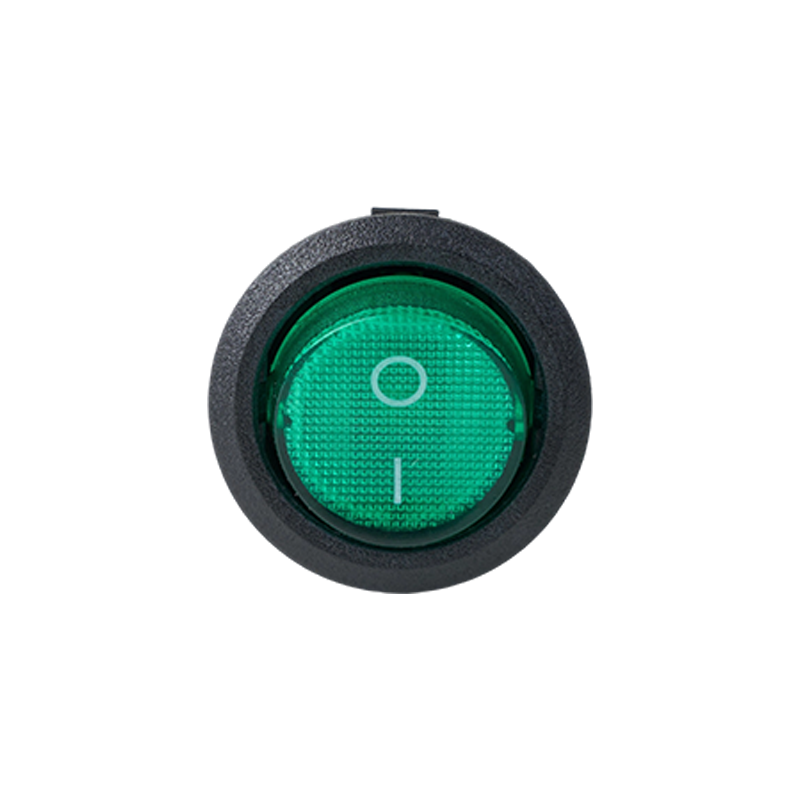

| Model | KCD1-F |
| Type | LED Rocker Toggle Switch |
| Actuation | Latching |
| Colour | Green |
| Illumination Colour | Green |
| Illumination Voltage | 230VAC |
| Contact Configuration | SPST |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Switch Operation | On-Off |
| Contact Rating | 10A 125VAC, 6A 250VAC |
| Voltage Rating | 250VAC |
| Electrical Life | 10,000 cycles |
| Terminal Type | Quick-connect, 4.8mm |
| Panel Cutout | 20mm |
| Dimensions | 29.2 × 23mm (H × D) |
| Mounting Style | Snap-on panel mount |
| Material | PA66 |
| Operating Temperature | -25°C to +85°C |
The terminal type, illumination colour, and panel cutout should be confirmed against the equipment design before ordering.
LED Rocker Toggle Switch Advantages
Illuminated Status Indication
The green LED illuminates at 230VAC, giving a visible on/off status reference directly on the switch.
Snap-On Panel Mounting
The 20mm cutout and snap-on design allow the switch to be fitted into a panel without additional mounting hardware.
Quick-Connect Terminals
The 4.8mm quick-connect terminals support fast wiring and assembly on production lines.
Dual Voltage/Current Rating
The 10A 125VAC / 6A 250VAC contact rating covers a range of load conditions within a single switch part number.
LED Rocker Toggle Switch Applications
The KCD1-F LED Rocker Toggle Switch is suitable for equipment requiring an illuminated on/off control point.
Household and commercial appliances
Power tools and industrial equipment
Audio and electronic devices
Control panels and enclosures requiring 230V switching
The final terminal configuration and illumination colour should be confirmed against the equipment's electrical design.
LED Rocker Toggle Switch Manufacturer and OEM Supplier
We are an LED Rocker Toggle Switch manufacturer and factory supplying illuminated rocker switches for equipment manufacturers, panel assemblers, and wholesale buyers.
Custom and OEM Service
We support Custom, OEM, and ODM requirements according to confirmed product specifications. Available requirements can include illumination colour, contact configuration, terminal type, and marking.
Factory Supply
As a direct Factory Supplier, we support sample evaluation, specification confirmation, OEM projects, and repeat Wholesale orders. Product requirements can be reviewed according to the target equipment and application.
KCD1-F LED Rocker Toggle Switch FAQ
What does SPST mean on the KCD1-F LED Rocker Toggle Switch?
SPST stands for single-pole, single-throw — a single circuit with two positions, on and off, controlled by a single switch.
What is the panel cutout size for this LED Rocker Toggle Switch?
The panel cutout is 20mm, matched to the switch's snap-on mounting design.
What voltage does the LED illumination run on?
The built-in LED illuminates at 230VAC, matching the switch's rated application voltage.
What is the maximum load the KCD1-F can switch?
The contact rating is 10A at 125VAC or 6A at 250VAC. Confirm your circuit's actual load against this rating before selection.
Can the LED Rocker Toggle Switch be customized for OEM projects?
Yes. Custom, OEM, and ODM requirements can be discussed according to the required illumination colour, contact configuration, terminal type, and marking.
Do you provide wholesale supply?
Yes. Factory supply of the LED Rocker Toggle Switch is available for wholesale buyers, equipment manufacturers, and OEM projects.
