Digital Temperature Controllers Expand PPR Welding Options

Wenzhou Leheng Technology Co., Ltd. has expanded its lineup of digital temperature controllers for plastic pipe welding machines, adding 2-button, 3-button, and 4-button control versions across resistor-capacitor, chip, transformer, and split-type circuit designs. The update gives buyers a wider set of options when sourcing a digital temperature controller for PPR, PE, and PP pipe fusion equipment.

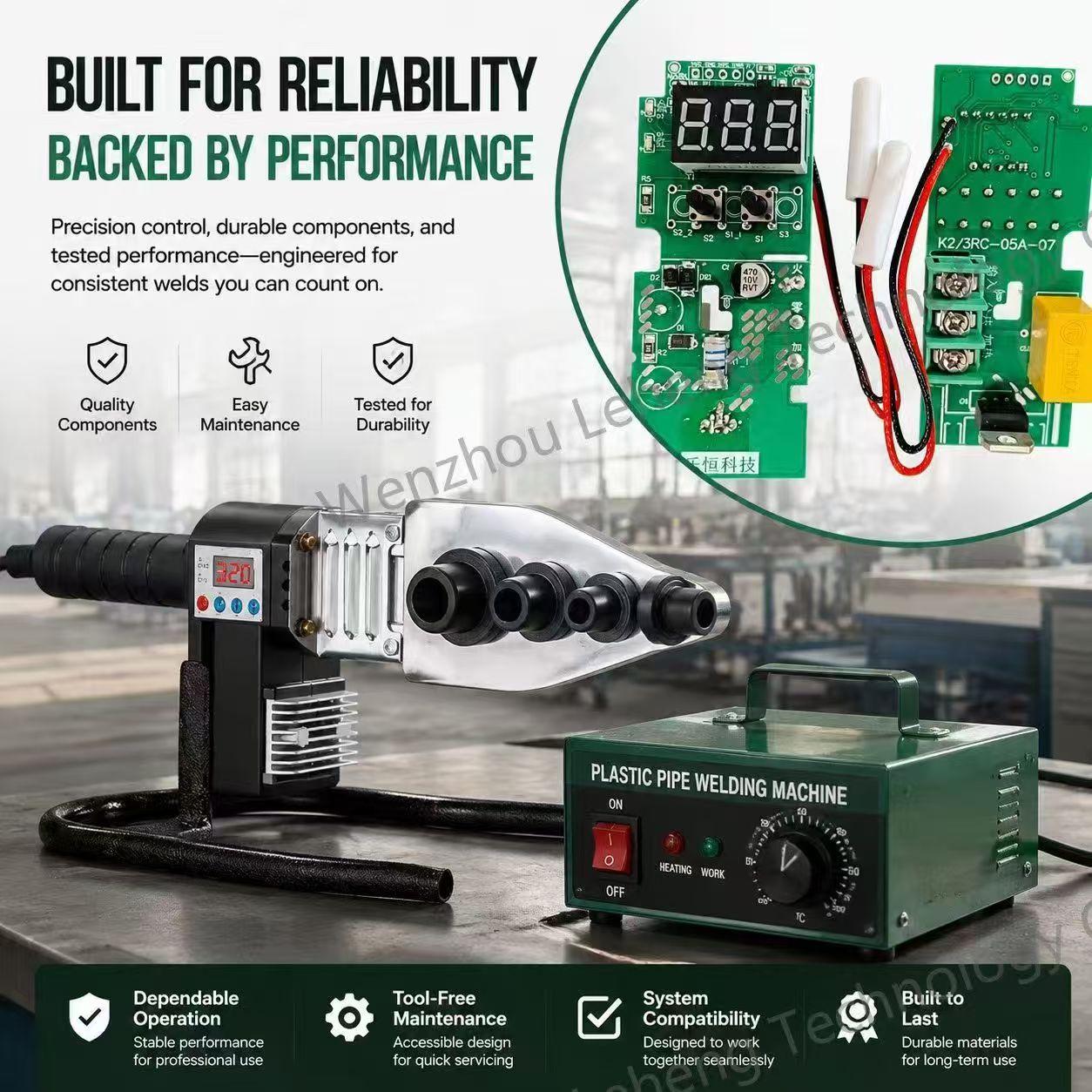

The controllers are built around a PTC heating element and a digital LED display that shows the working temperature in real time. Each digital temperature controller board connects to the heating unit through a fixed terminal layout, with a constant-temperature control mode designed to hold the set point during continuous welding cycles. Buttons on the board (2-key, 3-key, or 4-key depending on the version) handle temperature adjustment and mode switching without requiring a separate control panel.

Circuit type is the main variable across the range. Resistor-capacitor (RC) boards use a simpler analog circuit and are typically selected for lower-cost equipment builds. Chip-based boards run on a microcontroller and support tighter temperature tolerances along with additional safety logic. Transformer-type boards step down and isolate the control circuit from the main AC input through a transformer, an approach some factories prefer for added electrical safety margin. Split-type controllers separate the display unit from the switching module, allowing the display to be mounted in a different position from the heating control board — useful for PPR pipe welding machine housings with limited internal space.

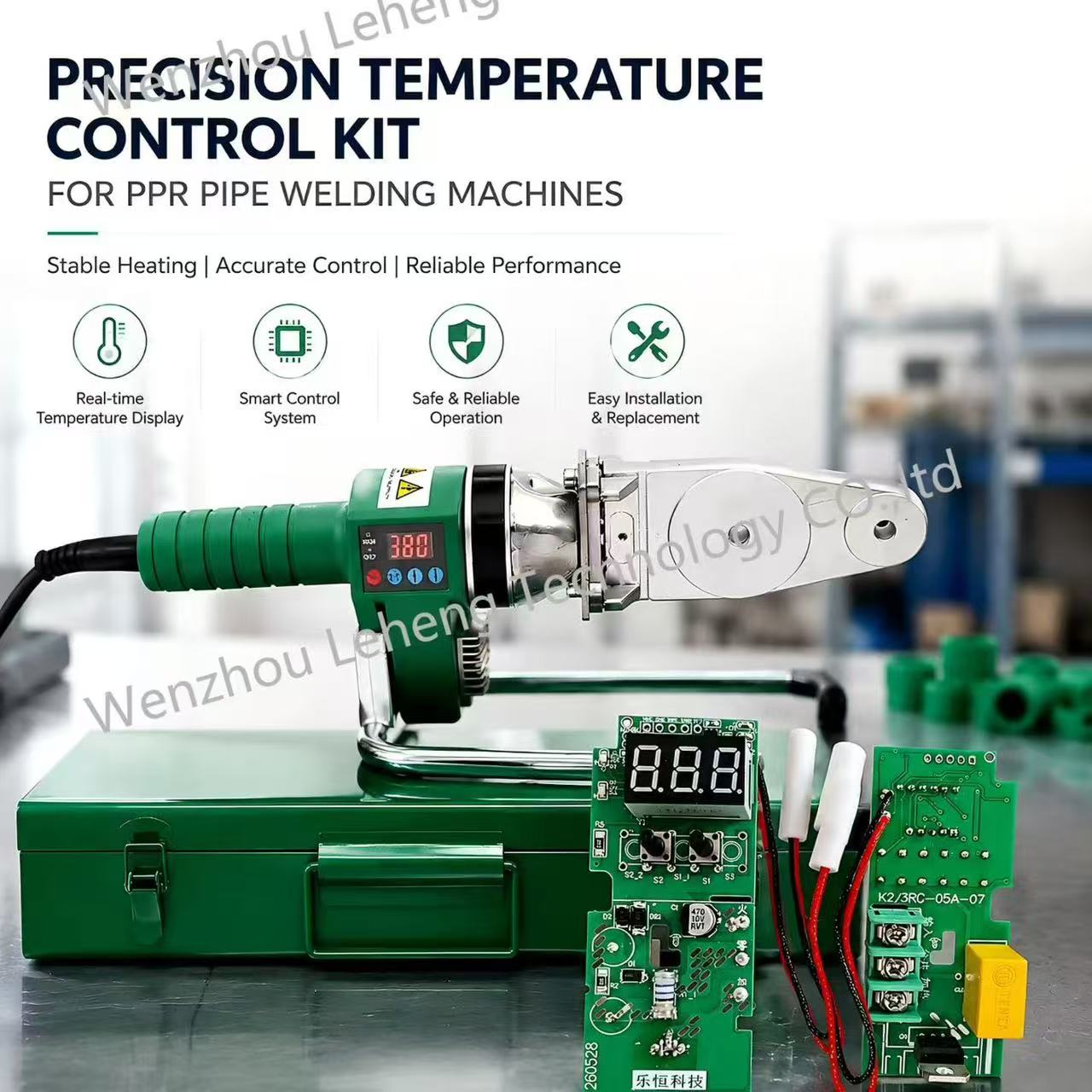

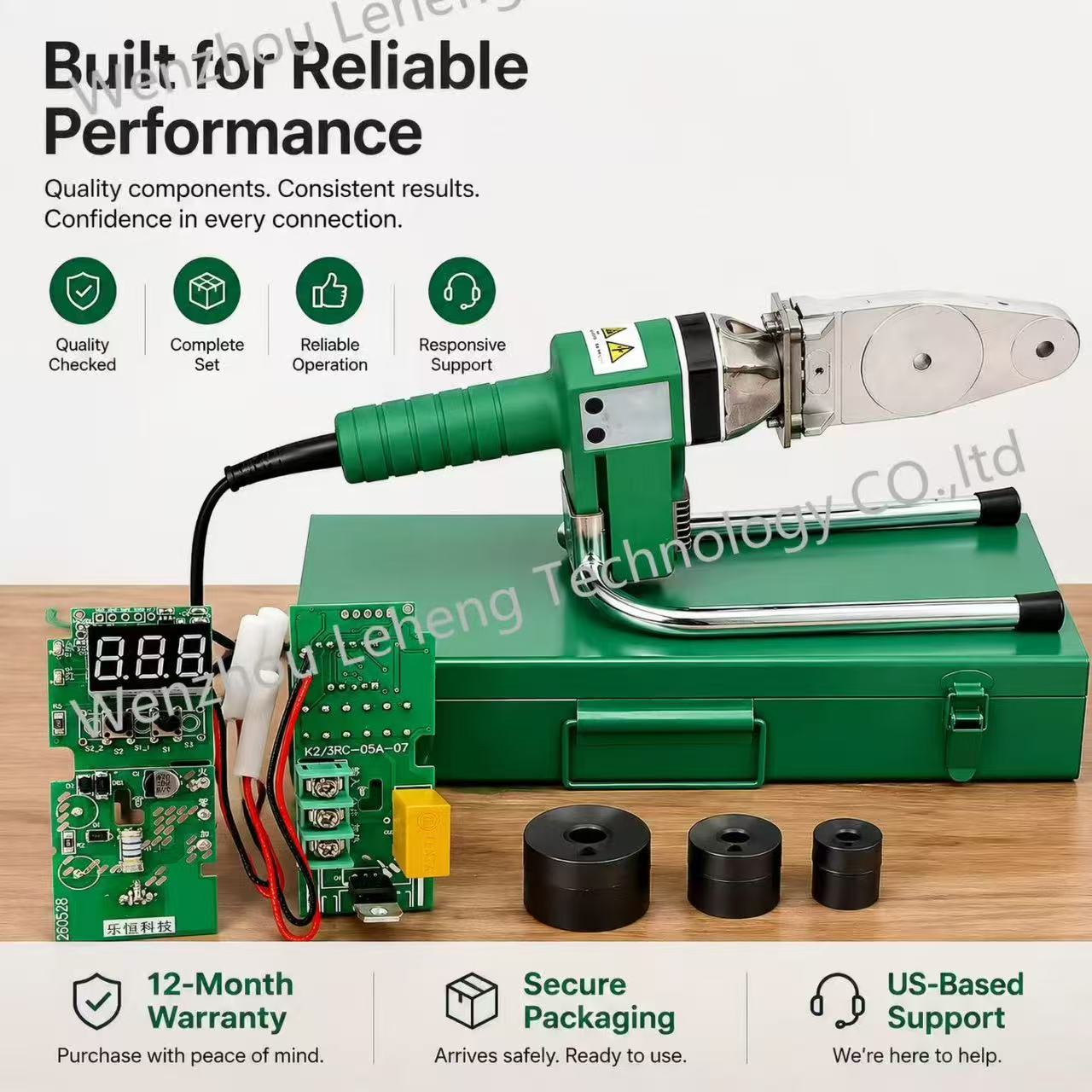

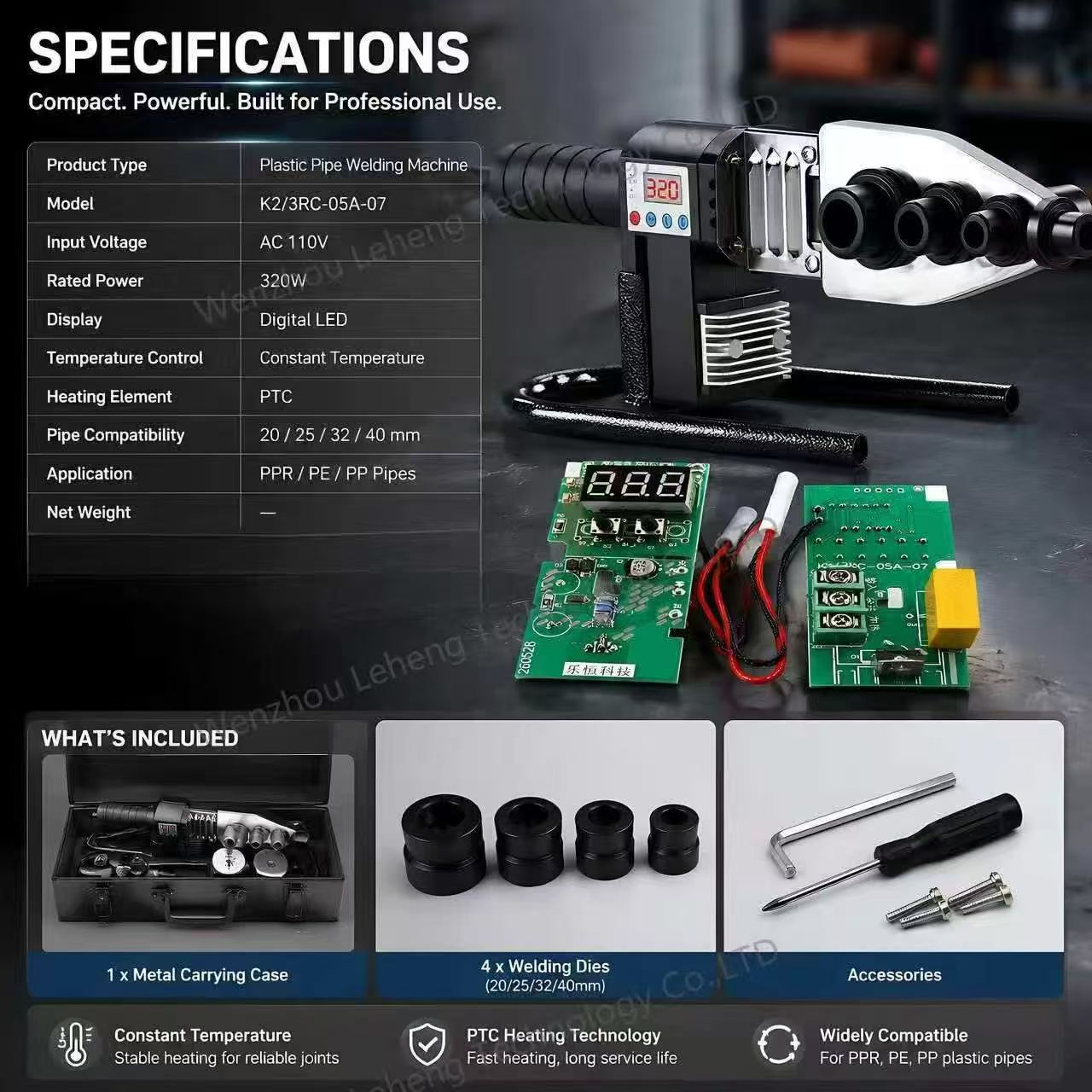

A representative configuration, model K2/3RC-05A-07, runs on AC 110V input with 320W rated power and supports pipe diameters of 20mm, 25mm, 32mm, and 40mm. This version pairs a digital temperature controller board with a PTC heating core inside a handheld PPR pipe welding machine body, and ships with a metal carrying case, four welding dies sized to the supported pipe range, and standard accessories such as a wrench and screwdriver.

On the production side, Wenzhou Leheng Technology has built its manufacturing around automated assembly lines, optical inspection equipment, and aging test stations, with quality checks applied from incoming components through to finished units. Monthly output at the factory exceeds 1 million units, with annual output above 12 million units. The company holds UL, TUV, CE, CQC, KC, RoHS, REACH, SGS, ISO 9001, and ISO 14001 certifications, was recognized as a National High-Tech Enterprise in 2020, and has taken part in drafting national industry standards for thermostats and related components.

Products from the factory are distributed across more than 80 countries, including the United States, Turkey, Australia, India, Russia, Iran, Germany, Brazil, Mexico, South Africa, and Egypt. Wenzhou Leheng Technology provides digital temperature controller boards for PPR pipe welding machines, with specifications and OEM options available according to application requirements.
