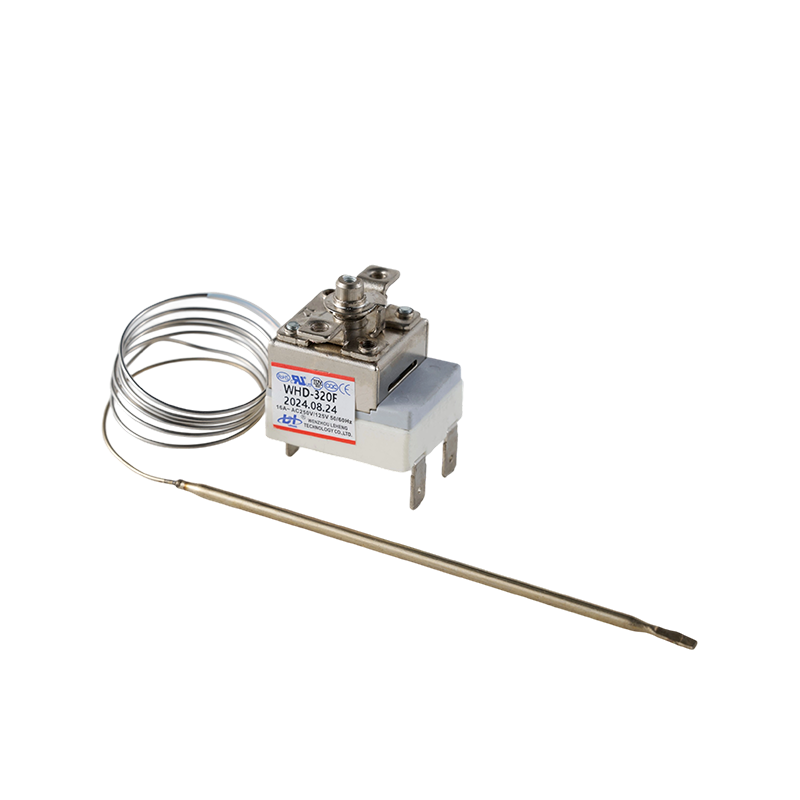

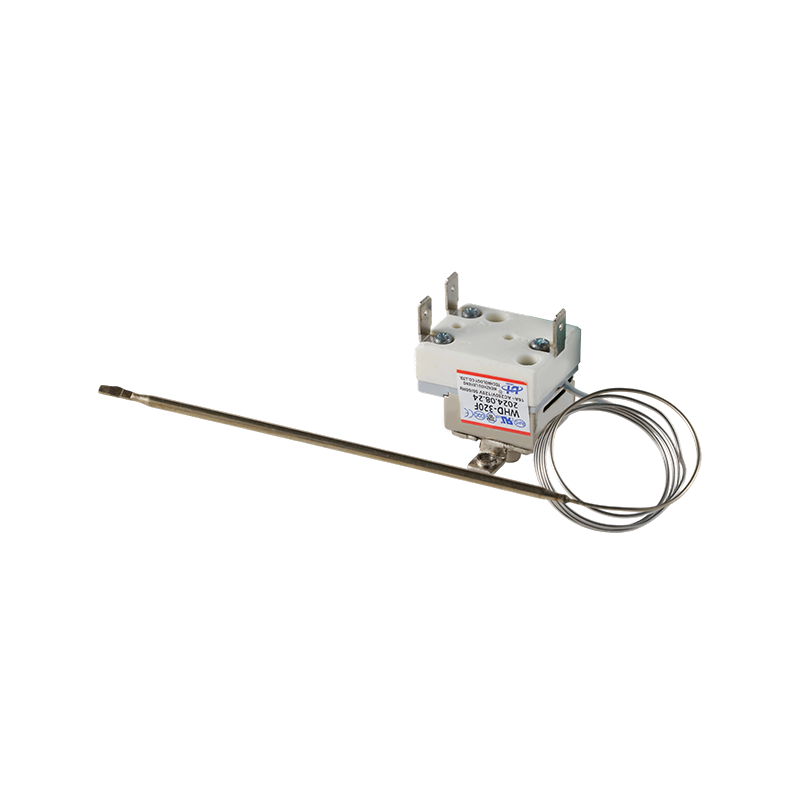

WHD-320F Capillary Mechanical Autoclaves Thermostat

The WHD-320F Capillary Mechanical Autoclaves Thermostat is designed for autoclaves, pressure cookers, and related heating equipment. Its mechanical switching structure responds to temperature changes detected by the capillary sensing element.

The thermostat has a specified temperature value of 320°C, an AC 16A 250V rating, a 700mm capillary tube, and a 2–12°C on-off temperature difference. Listed applications include armarium equipment and medical devices.

  • Parameter

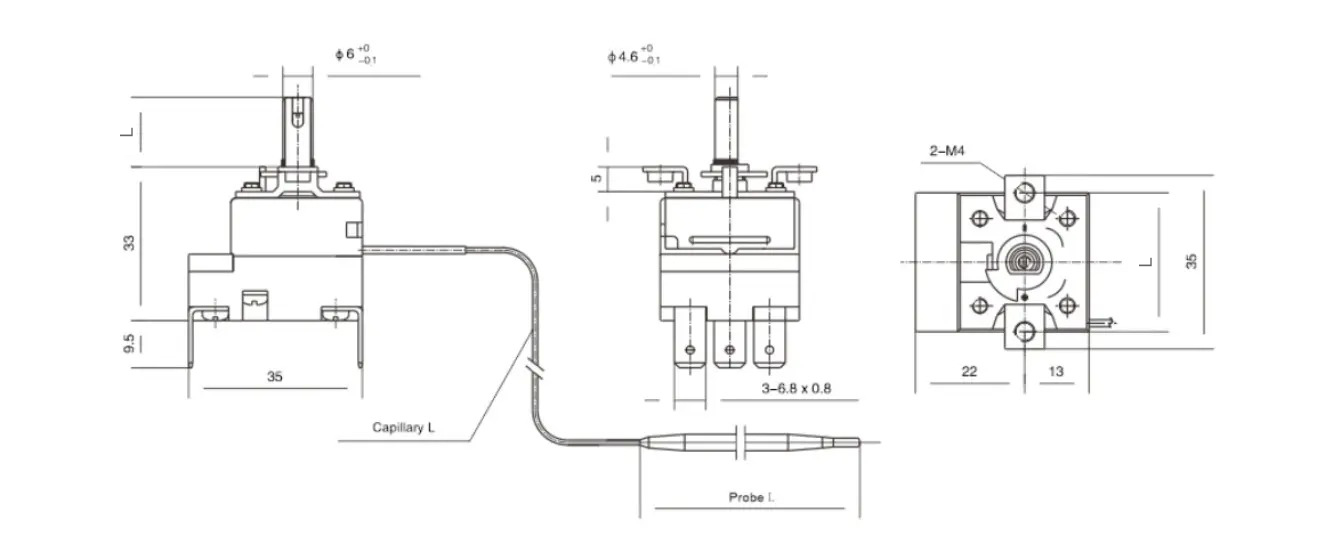

  • Diagram
  • Related Products
  • Contact
Parameter Specification
Model WHD-320F
Type Capillary Mechanical Autoclaves Thermostat
Rated Current/Voltage AC 16A 250V
Temperature Range 50–320°C
Bulb Dimensions 3 × 122mm
Bulb Length According to different temperature settings
Capillary Tube Length 700mm
On-Off Temperature Difference 2–12°C
Maximum Resistance Temperature T125
Applications Autoclaves, Armarium, Medical Devices


Capillary Mechanical Autoclaves Thermostat Advantages

Adjustable Temperature Setting

The WHD-320F supports temperature adjustment from 50°C to 320°C, allowing the set temperature to be matched to different heating requirements within its operating range.

Capillary Temperature Sensing

The capillary sensing element detects temperature changes at the sensing point and transfers the response to the mechanical switching mechanism.

Mechanical Temperature Control

The mechanical switching structure controls the connected heating circuit according to temperature changes without requiring a digital temperature display.

Flexible Sensing Bulb Placement

The 700mm capillary tube connects the sensing bulb to the thermostat body, allowing the two components to be positioned separately within compatible equipment.

Defined Switching Differential

The specified 2–12°C on-off temperature difference determines the temperature gap between switching actions, helping equipment developers evaluate the thermostat's operating characteristics.

Capillary Mechanical Autoclaves Thermostat Applications

The WHD-320F is designed for heating equipment that requires adjustable capillary-based mechanical temperature control.

Autoclaves

Pressure cookers

Armarium equipment

Medical devices

The final application depends on the required temperature range, electrical load, and equipment configuration.

Capillary Mechanical Autoclaves Thermostat Manufacturer and OEM Supplier

LEHENG supplies thermostat products for heating equipment manufacturers, distributors, and wholesale buyers. The WHD-320F capillary mechanical thermostat can be considered for equipment projects requiring adjustable temperature control and a mechanical switching mechanism.

Custom and OEM Service

Custom and OEM requirements can be discussed according to the target equipment, temperature range, sensing bulb configuration, capillary length, electrical rating, and installation requirements, subject to model availability.

Factory Supply

Factory supply supports sample evaluation, specification confirmation, OEM projects, and repeat wholesale orders. Order quantities, packaging, lead times, and shipping arrangements can be discussed according to project requirements.


Capillary Mechanical Autoclaves Thermostat FAQ

What Is the WHD-320F Capillary Mechanical Autoclaves Thermostat Used For?

The WHD-320F is intended for autoclaves, pressure cookers, armarium equipment, and compatible medical devices.

How Does the WHD-320F Control Heating?

Its capillary sensing element responds to temperature changes, while the mechanical switching structure controls the connected circuit.

Can the WHD-320F Be Integrated into Different Equipment Designs?

Yes. Its suitability depends on the equipment layout, sensing point, electrical requirements, and available installation space.

Is the WHD-320F Suitable for OEM Equipment Projects?

The WHD-320F can be evaluated for OEM projects requiring adjustable mechanical temperature control. Configuration requirements should be agreed upon before production.

Can LEHENG Discuss Customized Thermostat Requirements?

Yes. Buyers can discuss application needs, installation arrangements, and available configuration options with LEHENG.

What Should Buyers Consider When Selecting This Thermostat?

Buyers should assess the target equipment's heating function, required temperature control, electrical load, and installation arrangement before selecting the WHD-320F.
